Outdoor Field Wall Padding For Chain Link Fences 5 Ft X 4 Ft

1. Made in the USA
2. Moisture resistant, matching backer board
3. 18 oz. vinyl covers
4. Large selection of color choices
5. Bolt and plate attachment method
6. 3 inch thick high impact polyurethane foam
7. Class A flame retardant
8. Graphics and Z-Clip installation options available

Our Outdoor Field Wall Padding for Chain Link Fences 5 ft high x 4 ft wide are a simple and customizable bolt-on fence padding option that is great for football, softball, and baseball.

Outdoor Field Wall Padding for Chain Link Fences 5 ft high x 4 ft wide is manufactured with 18 oz. high UV resistant extruded vinyl, 3 inch thick high impact polyurethane foam padding and a 5/8 inch thick engineered moisture resistant sheathing panel. This is a reliable and affordable 5 ft field fence padding option that is trusted by big and small facilities alike. Outdoor Field Wall Padding for Chain Link Fences is installed on chain link fences with bolt and plate attachment brackets. For areas of the field that are not fencing, such as concrete or wood walls, please see our Outdoor Field Wall Padding Z-Clip products. They offer the same high quality protection to athletes, but installed on solid surfaces.

Our manufacturer has installed padding in hundreds of venues around the world and is the industry leader, offering site specific safety with customization capabilities. We offer Outdoor Field Wall Padding for installation on Chain Link Fences in a wide range of colors and sizes, plus the option to include custom designs. In addition, optional custom digital graphics and/or lettering is available with our 5 ft field fence padding with graphics products.

Product components:

The backing of this 5 ft field fence padding is a 5/8 inch APA BC exterior grade plywood, which has been primed on the edges and backside. The exposed plywood of the product is painted to seamlessly match with the vinyl color.

Vinyl covering:

– 18 oz per sq. yard laminated vinyl, unbalanced coating

– Fabric: 1000 Denier polyester basic fabric

– Tear strength test: warp 85 lbs., fill 83 lbs.

– Tensile strength: warp 221 lbs., fill 216 lbs.

– Weft insertion: 9 x 9

– Superior UV inhibitors

– Cold crack: minus 20 degrees Fahrenheit

– Class A flame retardant

– Vinyl cover is wrapped around the backside of the plywood and stapled every 3 inches with stainless steel staples.

– Each pad has 3 weep holes to evacuate moisture

The filler foam of this 5 ft field fence padding is a three inch thick, high impact foam. The filler foam is glued to the plywood back of the product to ensure that the foam remains in place.

The adhesive used in this product is rubber resin based, and is water, heat, and cold resistant. It also has a high flexibility and bonding factor.

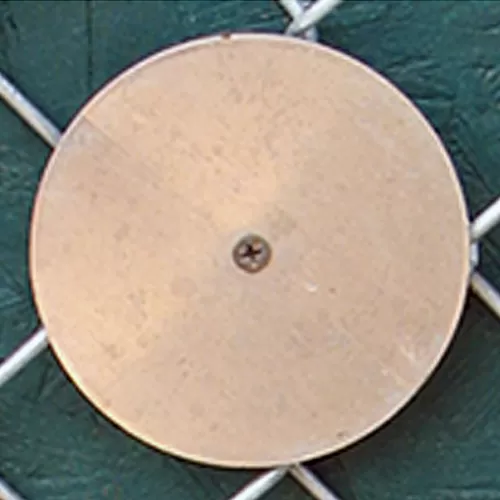

This product is attached by a minimum of 6 1/4 x 1-1/2 inch stainless steel bolts screwed into 1/4 inch threaded stainless steel washer inserts with 1/8 x 3 inch round backing plates

Maintenance

Wipe down as needed.

Shipping

Ships via freight delivery shrink wrapped on pallets.

This Product Ships Freight Only.
Please review our shipping disclaimer.
