Safety Wall Pad 1×6 Ft X 2 Inch WB Z Clip ASTM

1. Certified OSB
2. Impact rated polyethylene foam
3. Class A fire rated PVC Vinyl
4. 2 inch thick foam
5. 18 oz vinyl covering
6. Meets ASTM2440 Standards
7. LEED certification
8. Contains at least 60% recycled pre-consumer raw material

The right materials to make your project the very safest, the Safety Wall Pad 1×6 Ft x 2 Inch WB Z Clip ASTM comes on certified OSB, Impact rated polyethylene foam, and Class “A” fire rated PVC vinyl. Pads are easy to install, the 7/16 inch oriented strand board is covered in 2 inch thick Impact rated polyethylene foam and Class A fire rated 18-ounce vinyl, with a 1 inch nailing margin top and bottom.

Indoor stationary wall pad panels, are intended for direct wall connection. The panel is on a wooden back that is then attached to a 2 inch Impact rated polyethylene foam using a two-part adhesion process. The panel is then covered front and sides with a Class A PVC vinyl, then firmly stapled onto the wooden part of the panel.

Components

1. Backer Board: Not less than 7/16-inch- (11-mm-) SFI® Certified Responsible

Urea Formaldehyde Free recycled composite wood backer board. This portion of

the product contributes toward satisfying Credit IEQ 4.4 under LEED.

2. Foam Layer – 2 inch polyethylene foam meets standards for ASTM 2440. The test method

quantifies impact in terms of g-max and Head Injury Criterion (HIC) scores. Promotes

closed-loop recycling of post-industrial scrap. Contains at least 60% and up to 100%

recycled pre-consumer raw material. The use of pre-consumer recycled material can

contribute to LEED® certification points.

3. Covering – 18 oz. laminated leather grain embossed vinyl BACshield: Anti-Mildew,

Anti-Fungus, Antimicrobial, Antibacterial treated, UV treated. Passes ASTM E84 (Class A),

NFPA-701 & Cal 117 FR tests C.P.S.I.A. Certified.

INSTALLATION

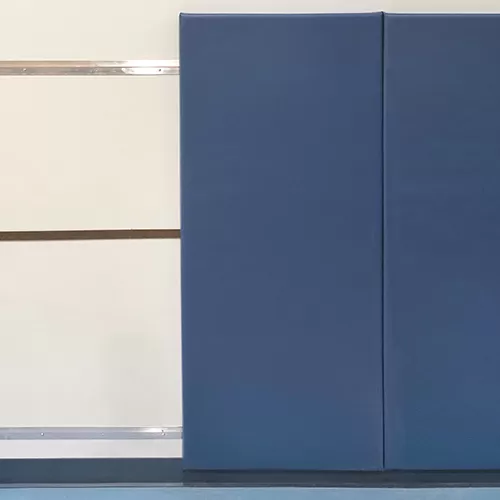

Z-Clip installation features a channel type connection method where one channel connects to the pad and a receiving channel is connected to the wall. Z-Clips are to be attached to the back of the wall pad panels during installation. Refer to ASTM standards for height above finished

floor. 4 inch AFF to bottom of foam current.

STANDARD MANUFACTURING

Typical panel to be manufactured at 12 inch width by specified height.

All columns and corners to be pre-fabricated to fit field condition

Shipping

Ships via freight delivery shrink wrapped on pallets.

This Product Ships Freight Only.
Please review our shipping disclaimer.
