Safety Wall Pad 2×8 Ft X 2 Inch WB Z-Clip ASTM

1. Certified OSB
2. Impact rated polyethylene foam
3. Class A fired PVC Vinyl
4. 2 inch thick foam
5. 18 oz vinyl covering
6. Leed certification
7. Contains at least 60% recycled pre-consumer raw material
8. Anti-Mildew, Anti-Fungus, Antimicrobial, Antibacterial treated

The right materials to make your project the very safest, it is certified OSB, Impact rated polyethylene foam, and Class A fire rated PVC vinyl. Pads are easy to install the 2 inch thick Impact rated polyethylene foam laminated to 7/16 inch oriented strand board covered in Red Class A fire rated 18-ounce vinyl. 1inch nailing margin top and bottom.

Indoor stationary wall padding panel, intended for direct wall connection. The panel is a wood backed pad of inch Impact rated polyethylene foam bonded to the face using a two-part adhesion process. The foam and wood are covered front and sides then firmly stapled onto the back using Class A PVC Vinyl.

Components

1. Backer Board: Not less than 7/16-inch- (11-mm-) SFI® Certified Responsible

Urea Formaldehyde Free recycled composite wood backer board. This portion of

the product contributes toward satisfying Credit IEQ 4.4 under LEED.

2. Foam Layer – 2 inch polyethylene foam meets standards for ASTM 2440. The test method

quantifies impact in terms of g-max and Head Injury Criterion (HIC) scores. Promotes

closed-loop recycling of post-industrial scrap. Contains at least 60% and up to 100%

recycled pre-consumer raw material. The use of pre-consumer recycled material can

contribute to LEED® certification points.

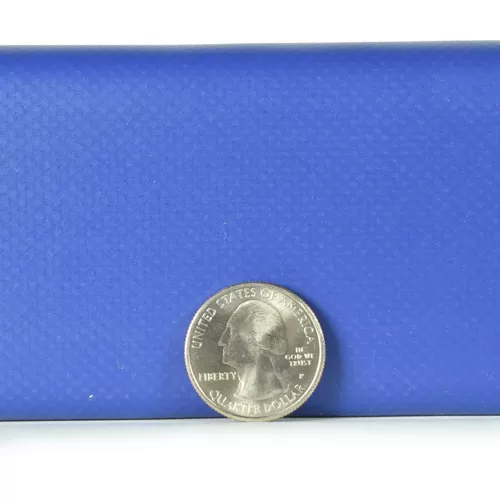

3. Covering – 18 oz. laminated leather grain embossed vinyl BACshield: Anti-Mildew,

Anti-Fungus, Antimicrobial, Antibacterial treated, UV treated. Passes ASTM E84 (Class A),

NFPA-701 & Cal 117 FR tests C.P.S.I.A. Certified.

STANDARD MANUFACTURING

Typical panel to be manufactured at 24 inch width by specified height.

All columns and corners to be pre-fabricated to fit field condition

INSTALLATION

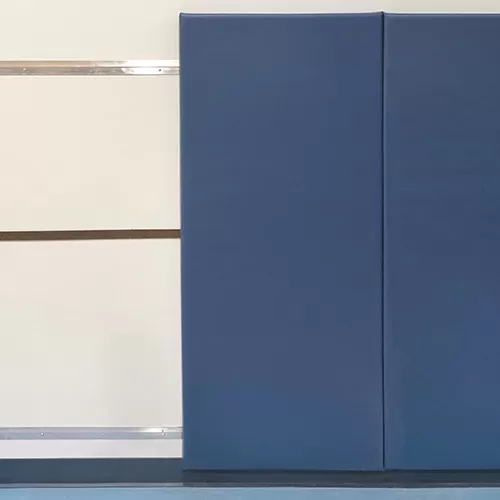

1. 1 inch Nail Margin top and bottom along width edge attached directly to wall using

appropriate hardware for wall type. Refer to ASTM standards for height above finished

floor. 4 inch AFF to bottom of foam current.

Shipping

Ships via freight delivery shrink wrapped on pallets.

This Product Ships Freight Only.
Please review our shipping disclaimer.
